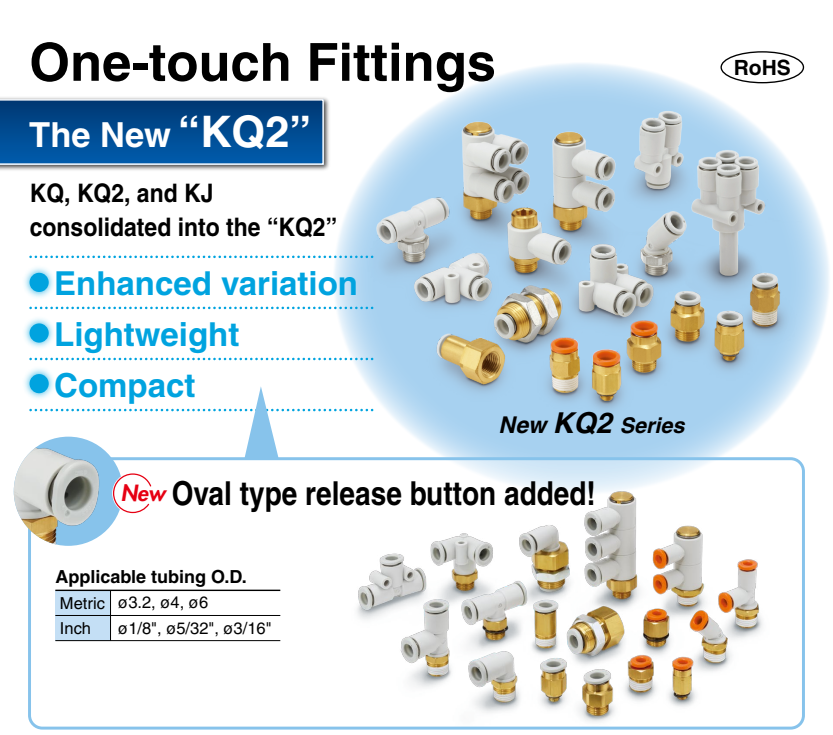

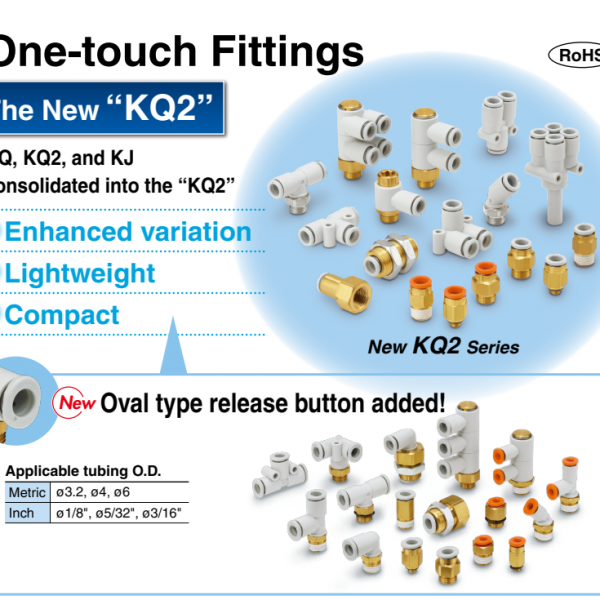

One-touch Fittings KQ2
- ・Can be used in vacuum to –100 kPa
・Body types: Total of 51 models
・Thread material/Surface treatment (Treated or Non-treated): 2 types
・Selectable surface treatments: Brass (No plating), Electroless nickel-plated brass
・Applicable tubing O.D.

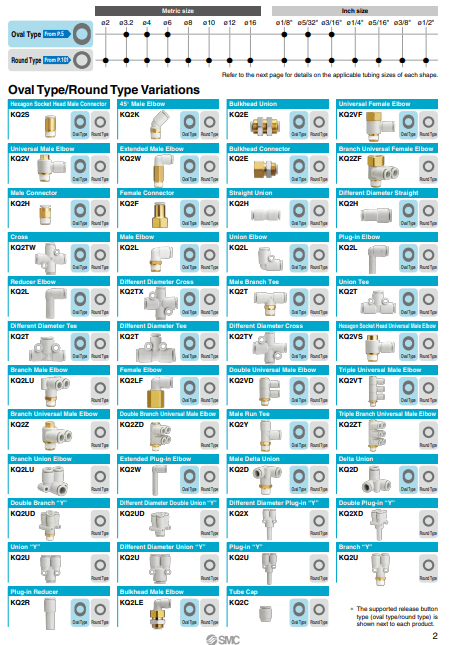

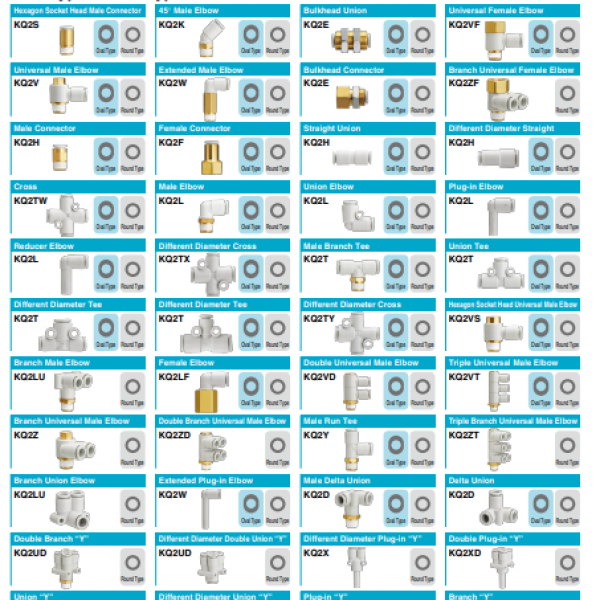

Round Type
Metric： ø2, ø3.2, ø4, ø6, ø8, ø10, ø12, ø16
Inch：ø1/8'', ø5/32'', ø3/16'', ø1/4'', ø5/16'', ø3/8'', ø1/2''
Oval Type
Metric： ø3.2, ø4, ø6
Inch：ø1/8'', ø5/32'', ø3/16''
・Connection thread
Metric：M3, M5, M6
R,Rc ：1/8, 1/4, 3/8, 1/2
G：1/8, 1/4, 3/8, 1/2
NPT：10-32UNF, 1/16, 1/8, 1/4, 3/8, 1/2
Uni：1/8, 1/4, 3/8, 1/2

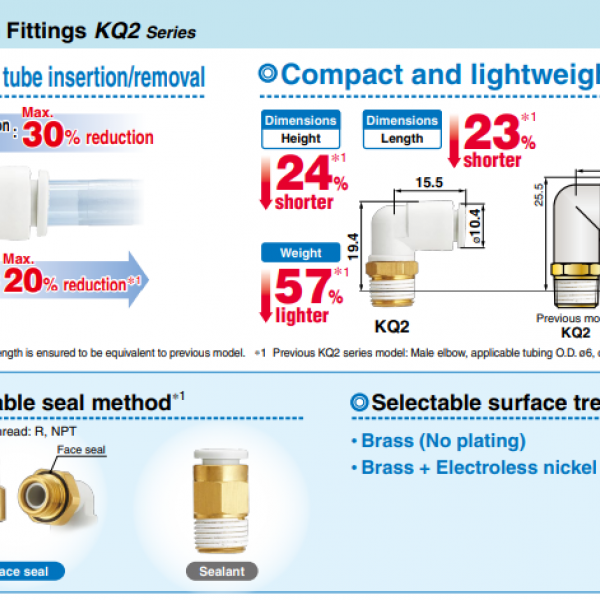

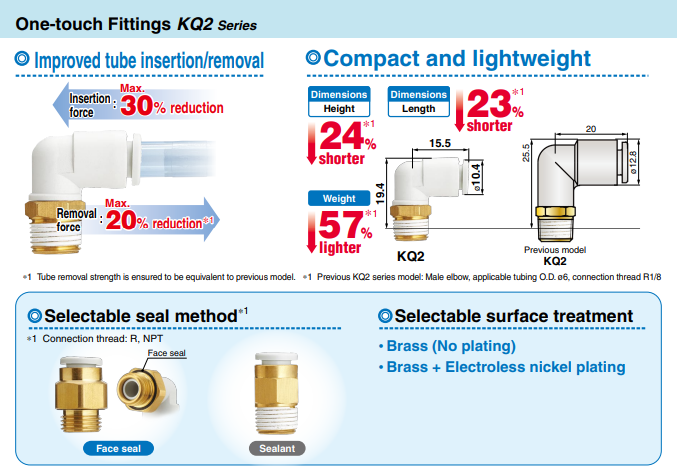

・Seal method
Sealant/Gasket seal

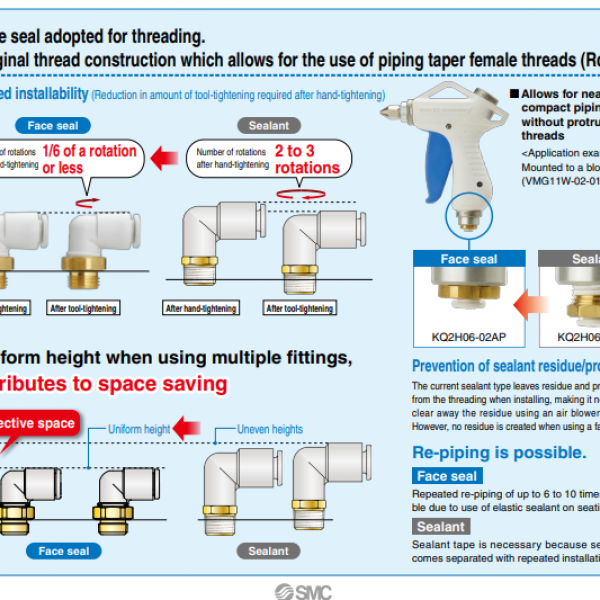

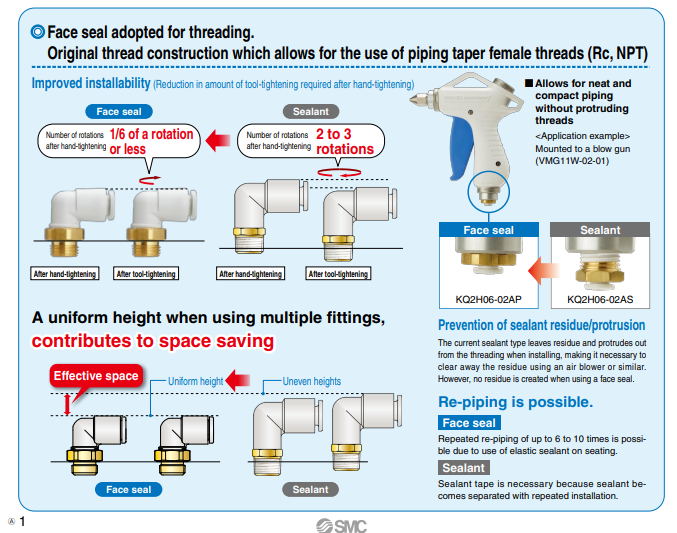

Face seal
Gasket seal（Uni thread）
